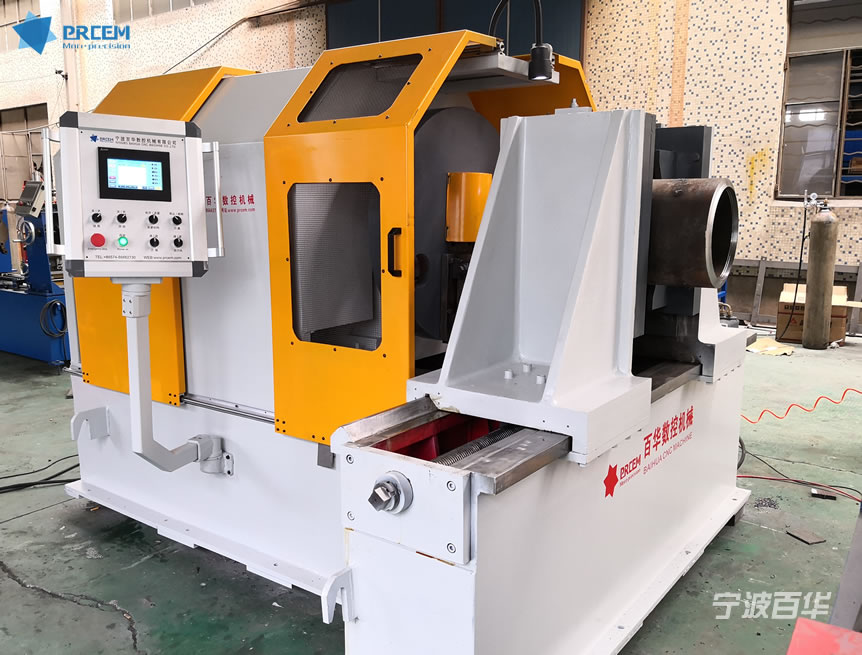

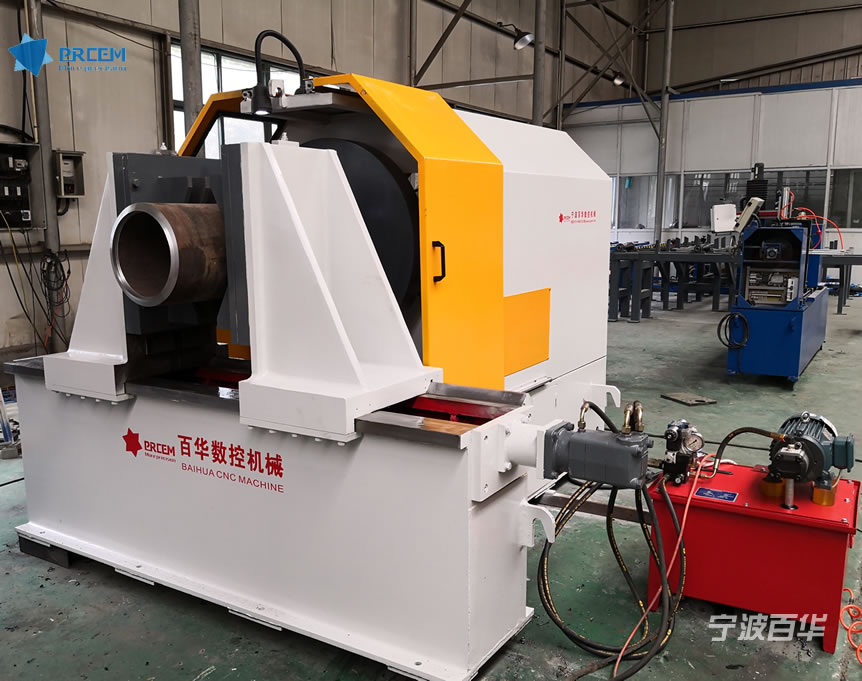

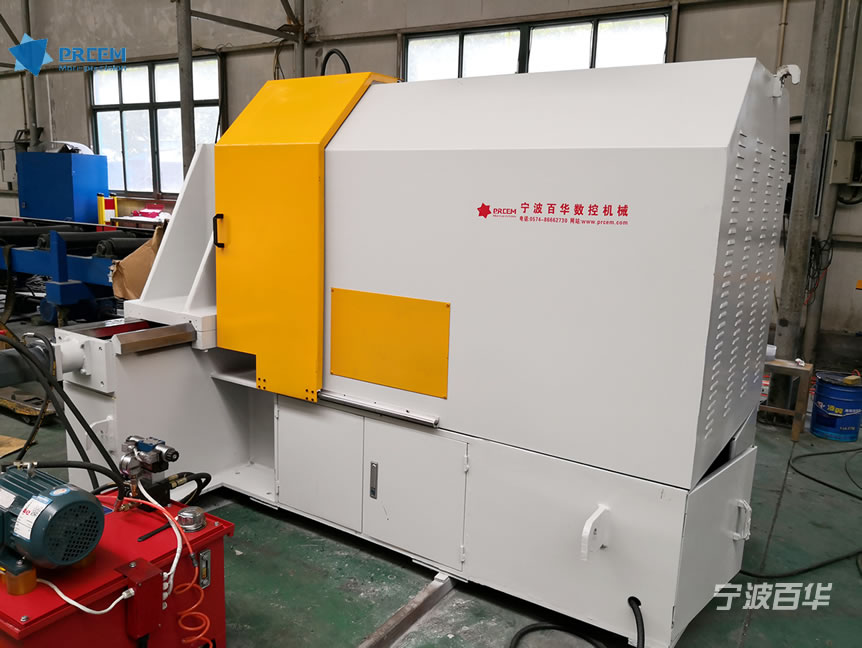

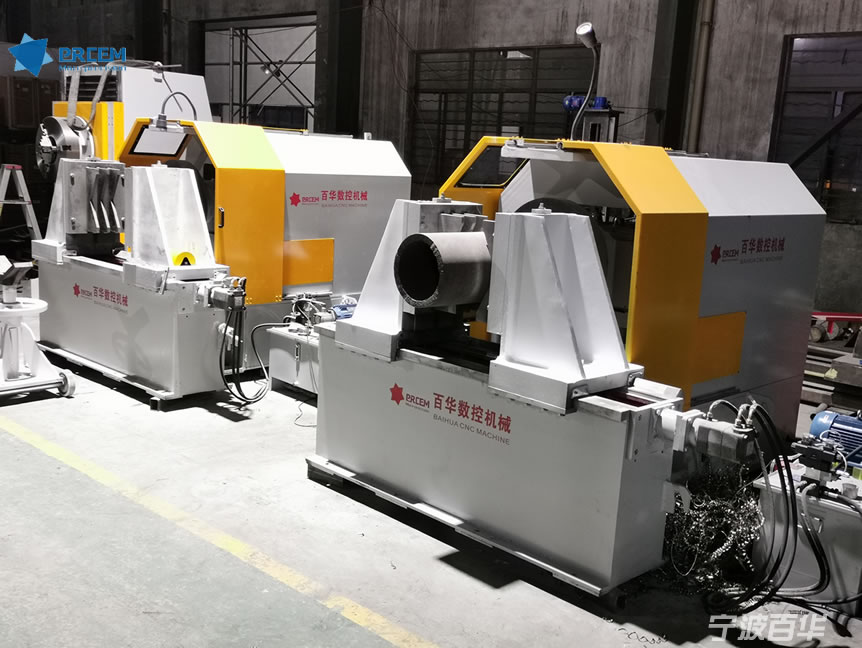

PEM数控管道高速坡口机(三菱)

  • 产品概述
  • 主要参数
  • 型号规格
    PEM-16B/24B/32B/40B/48B,适用管径规格分别为Ф60-426/Ф108-630/Ф219-830/Ф325-1016/Ф400-1220;

    设备用途
    PEM系列管道数控高速坡口机是宁波百华公司应市场需要研制的专业化高速管道坡口加工装备,专门用于大批量中厚壁管道的坡口加工,操作者只需一键启动即可实现自动加工完成,主要用于电建、石油、石化、核电等行业高压管道的坡口加工,最大加工壁厚达δ150mm。

    设备参数

    型  号

    PEM-16B

    PEM-24B

    PEM-32B

    PEM-40B

    PEM-48B

    加工管径mm

    Ф60-426

    Ф108-630

    Ф219-830

    Ф325-1016

    Ф400-1220

    加工壁厚mm

    6-50

    10-150

    10-150

    10-150

    10-150

    主电机功率KW

    4.0

    7.5

    11.0

    11.0

    11.0

    径向走刀伺服功率W

    400

    400

    400

    400

    400

    轴向走刀伺服功率KW

    1.5

    1.5

    1.5

    1.5

    1.5

    适用材质

    碳钢、合金钢、不锈钢、低温钢、耐热钢、双相不锈钢、镍基合金等

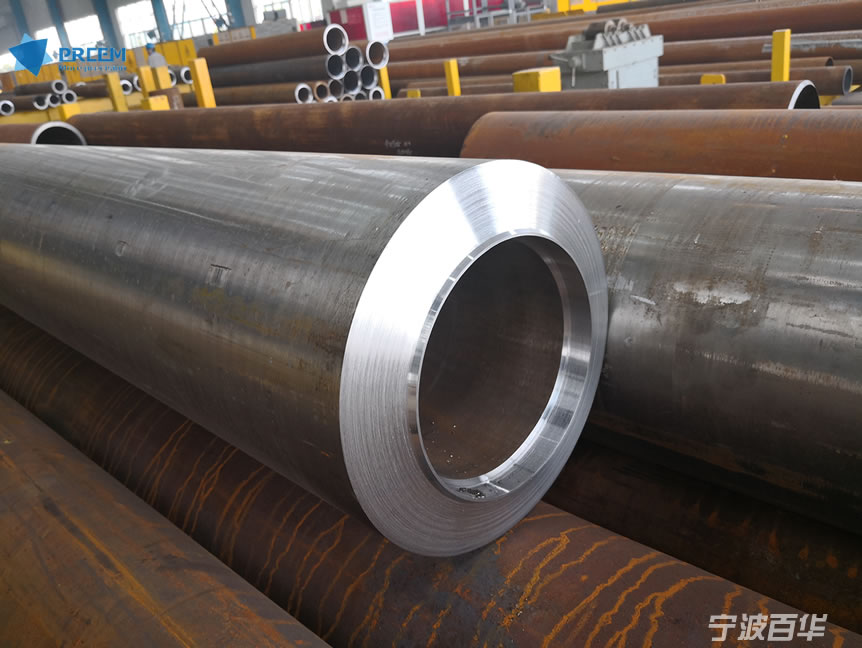

    坡口形式

    I、U、X、V、双V、双U型及内坡口、内镗孔等各种基本型、复合型坡口

    坡口角度

    0-90°任意角度及圆弧角均可

    进退刀方式

    径向伺服进退刀+轴向伺服进退刀,两轴联动数控控制。

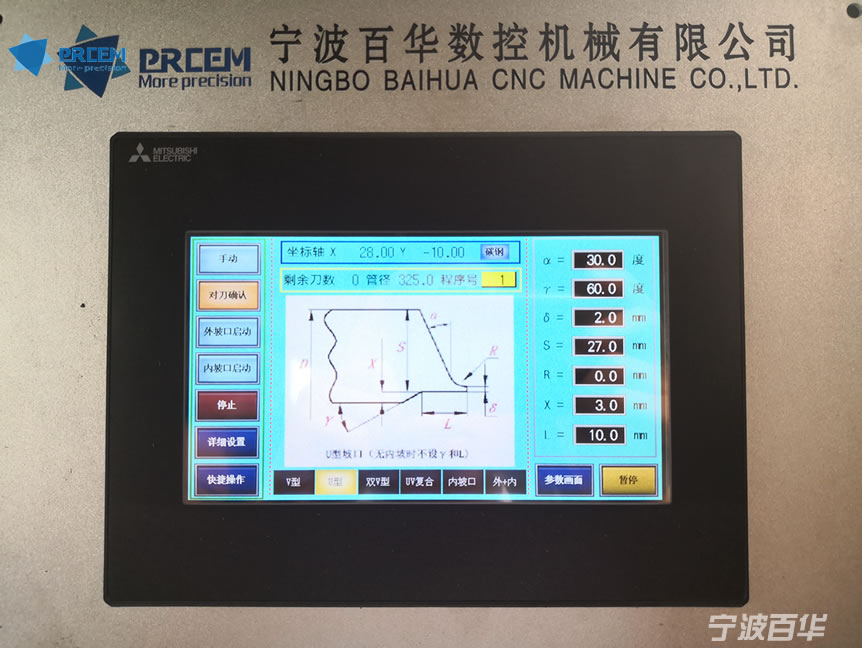

    控制方式

    人机界面数字化输入加工工件参数,程序自动运行完成加工

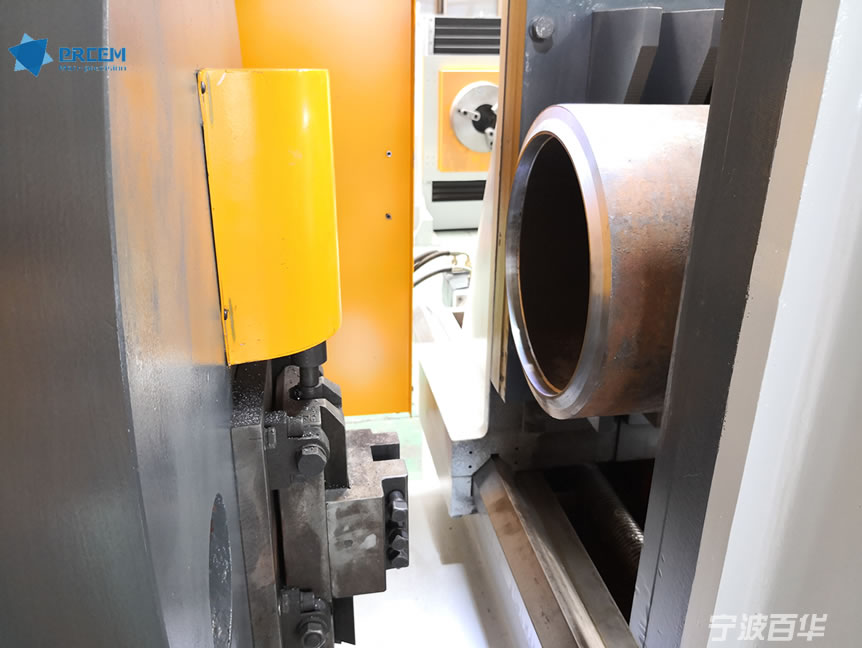

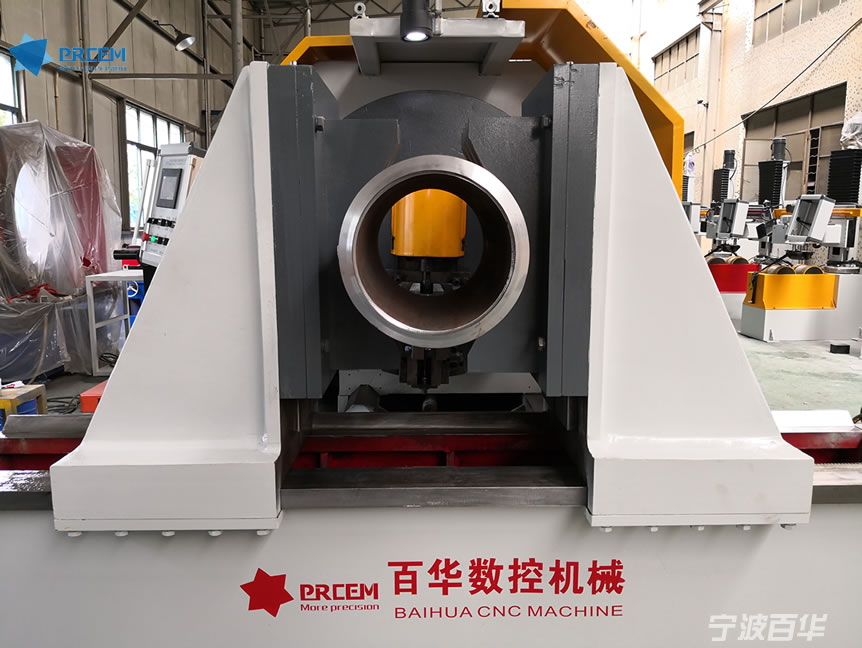

    工件夹紧

     液压左右自定心夹紧

    管道支承

    升降支撑小车或选备自动升降输送辊道,实现不同直径管子的加工高度调节

    控制系统

    德国西门子或日本三菱控制系统

    输入电源

    AC 380V  50Hz
